Horizontal boring machines

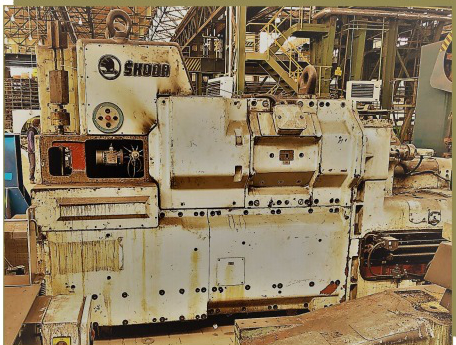

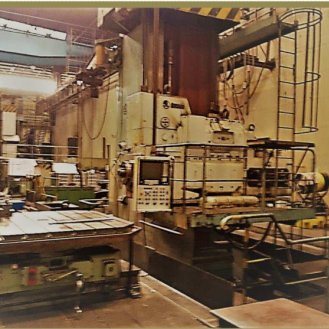

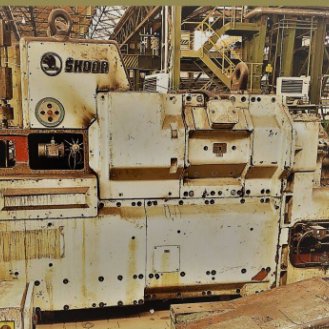

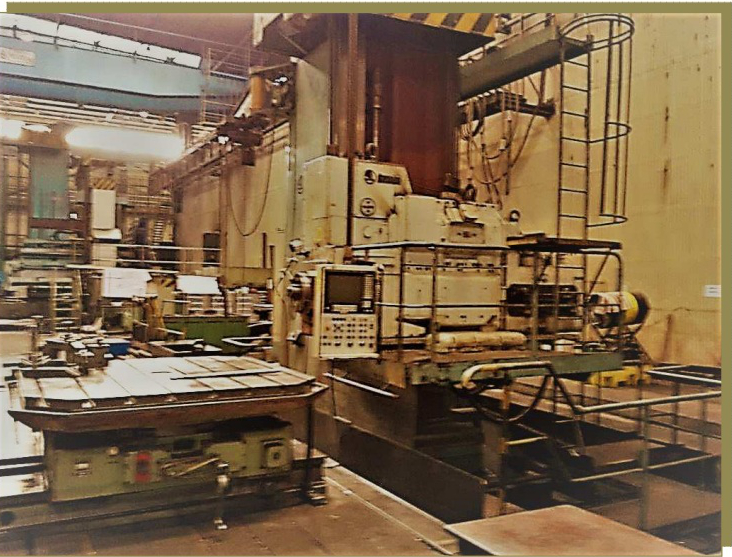

Horizontal Boring mill Skoda W 160 G / NCS

Year of manufacture : 1978

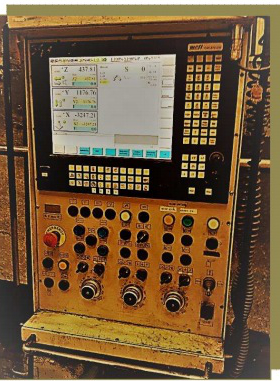

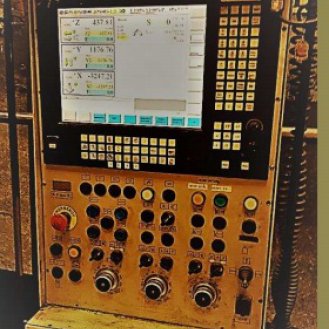

Control : CNC Mefi

Dia. of the spindle : 160 mm

Spindle taper : M100

Horizontal travel : 1 600 mm

Vertical travel : 2 500 mm

Longitudinal travel : 6 000 mm

The largest quill extension : 1 250 mm

Base plate dimension : 8 000 x 5 500 mm

Spindle speed in the range of : 2 – 800 rpm

Feeds in the range: drilling milling :

0.5 – 1600 mm/min

0.5 – 3200 mm/min

Power of the spindle motor : 55 kW

Horizontal Boring Mill Skoda W 160G

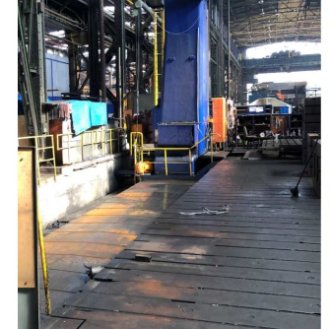

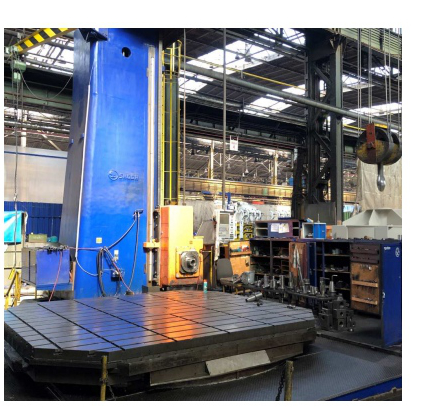

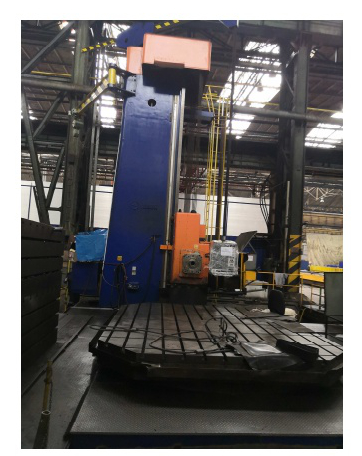

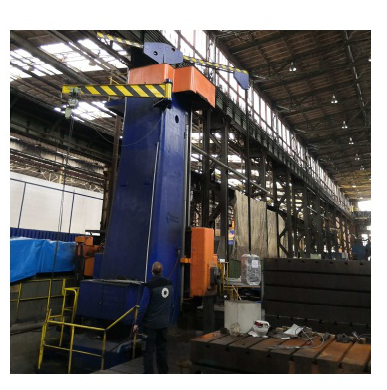

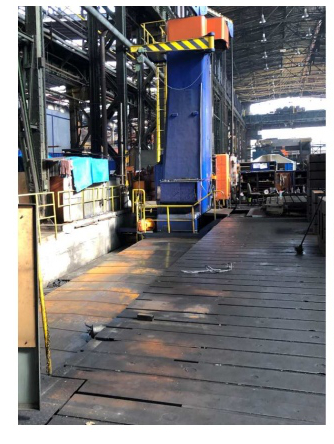

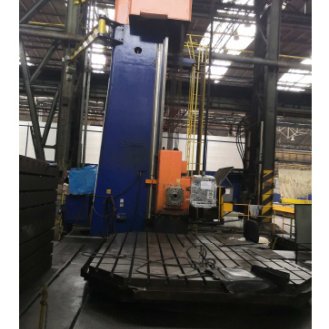

Horizontal Boring mill with integrated table Skoda W 200 / HB, NC+SEA60

Year of manufacture : 1986

Control : retrofited on CNC Heidenhain tnc530

Dia. of the spindle : 200 mm

Spindle taper : ISO60

Spindle extension : 2 000 mm

Pinola extension : 1 600 mm

Vertical travel : 5 250 mm

Longitudinal travel : 16 200 mm

SEA60 table dimension : 3 500 x 4 000 mm

Table load capacity : 60 t.

Spindle speed in the range of : 2 – 630 rpm

Feeds in the range: drilling milling :

1 – 3000 mm/min

1 – 6000 mm/min

Power of the spindle motor : 77 kW
